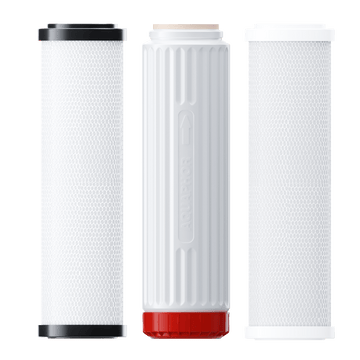

Aquaphor filter cartridge set, TRIO: B510-3, B510-4, B510-7 (for hard water)

SET of cartridges B510-3, B510-2, B510-7

The B510-03 cartridge is manufactured using carbon fiber block technology using activated coconut charcoal. Due to its compact structure, it effectively removes all impurities, organic compounds and active chlorine from water. It removes particles up to 10 microns.

Due to the high content of Aqualen, the cartridge effectively cleans water of any impurities, such as dissolved (bivalent) iron.
The Aquaphor B510-03 cartridge is made of block activated carbon using CarbFiber Block technology and contains ion-exchange fibers (Aqualen) and silver ions. This cartridge performs a deep filtration of a wide range of contaminants: Chlorine, heavy metals, pesticides, oil residues but also other toxins and allergens. This cartridge has a filtration rate of 10 microns and dimensions of 2.5″ x 10″ (60mm x 254mm). The filter contains a high amount of ion-exchange fibers patented by Aquaphor under the name Aqualen. These fibers contain silver in ionic form and contribute to the retention of colloidal or dissolved iron.

Cartridge B510-04

for water softening, used in Aquaphor systems with separate tap. Softens water, solving the problem of deposits and formation of hard particles during boiling. Can be regenerated at home.
The Aquaphor B510-04 water softening cartridge/filter contains an ion exchange resin, which retains the hard Calcium and Magnesium ions, responsible for limescale deposits.

The Aquaphor B510-04 cartridge/filter can be regenerated several times using salt. The filter's lifespan depends on the water hardness and can be extended by the regeneration procedure.
The regeneration of this cartridge is done by you yourself, washing the ion exchange resin inside the B510-04 filter with SALT, according to the instructions in the user manual.

The frequency of regeneration depends on the hardness of the water.

Water hardness, mmol/L or dH/L Volume of water softened until regeneration, Liters
1–2 / 2-5.6 1000–500
2–3 / 5.6-8.4 500–330
3–4 / 8.4-11.2 330–250
4–5 / 11.2-14 250–200

Cartridge B510-07

contains a high amount of ion-exchange fibers patented by Aquaphor under the name Aqualen. These fibers contain silver in ionic form and contribute to the retention of colloidal or dissolved iron.

This replacement filter uses an ultra-dense fibrous block of powdered coconut activated carbon. It removes residual concentrations of organic contaminants and heavy metals. It filters particles down to 1 micron in size.

Modified Aqualen fibers distribute the water flow in the ultra-dense filter medium, allowing for optimal purification. The Aquaphor B510-07 cartridge is made of block activated carbon using CarbFiber Block technology and contains ion-exchange fibers (Aqualen) and silver ions. This cartridge performs deep filtration of a wide range of contaminants: Chlorine, heavy metals, pesticides, oil residues but also other toxins and allergens. This cartridge has a filtration grade of 1 micron and dimensions of 2.5″ x 10″ (60mm x 254mm).

The filter contains a high amount of ion-exchange fibers patented by Aquaphor under the name Aqualen. These fibers contain silver in ionic form and contribute to the retention of colloidal or dissolved iron.

This cartridge can also be used in filtration systems manufactured by other manufacturers that use 2.5″ x 10″ cartridges.
