Shower channel with brushed stainless steel grate, TECELineo 15301100, adjustable length 40 - 100 cm
Shower channel with brushed stainless steel grate, TECELineo 15301100, adjustable length 40 - 100 cm
The TECELineo shower channel, with adjustable length between 40 and 100 cm , is intended for shower drainage, for installation in the adhesive layer, above the screed and the waterproofing system.

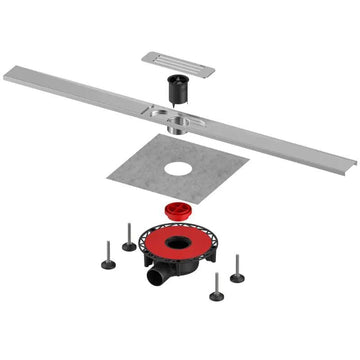

The set includes:
- shower profile that can be cut to length with an internal slope for improved water drainage and self-cleaning effect;
profile cover; - flanged siphon for wall installation. Equipped with horizontal connection pipe for a DN 50 pipe, including protective cover for installation and anti-odor membrane;
- sealing membrane for composite waterproofing;
- Mounting feet for easy height alignment and fixing in position during screed pouring.
Features:
- the shower profile can be shortened to lengths ≥ 400 mm;
- the profiled cover is resistant according to load class K3 - test load 300 kg;
- the shower profile and cover are made of stainless steel 1.4301 (304);
- for covering floors of 8-18 mm (including the adhesive layer);
- for installation flush with the wall, with wall coverings from 10 mm (including adhesive bed);
- for installation against the wall or at any distance from the wall;
- minimum installation height 75 mm (from the lower edge of the siphon to the upper edge of the screed);
- drainage capacity ≥ 0.5/≥ 0.6 l/s (according to EN 1253 at an accumulation of 10/20 mm above the profile);
- hydraulic guard height > 22 mm;
- removable anti-odor membrane.
| Brandi | CEEC |
|---|---|
| Guarantee | 10 years |
| Product code | 15301100 |
| The collection | Lineo |
| Finish | brushed stainless steel |
| Length (cm) | 100 |
| Output type | laterite |
| Maximum flow rate (l/min) | 36 |
| Material | stainless steel 1.4301 (304) |
| Mounting type | on the floor |
| Connection size | DN50 |
| Maximum load (kg) | 300 |
| Installation height (mm) | 75-110 |
| Other features | complete shower profile set |
| Maximum hot water temperature (°C) | 90 |
