Shower channel package with Tece Drainbase grid 70cm
Shower channel package with Tece Drainbase grid 70cm

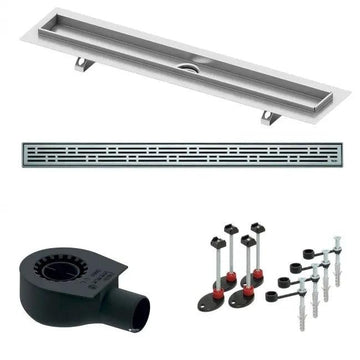

The Tece Drainline package includes the following components:
Tece Drainline shower channel , which is straight and comes with Seal System 600700 sealing tape. This is the body of the channel, intended to be installed in the screed, and includes a flange and Seal System sealing tape to ensure a certified connection with the composite waterproofing.
The elements included are:
- Channel body made of polished stainless steel, material 1.4301 (304)
- Seal System sealing tape to be installed by yourself with liquid or composite waterproofing
- Clamps for anchoring in the screed and for mounting the mounting feet, if necessary
- A centrally positioned drain hole
- An internal slope to improve drainage and ensure self-cleaning
- Sealing gaskets
The Tece Drainline Basic design grid for the shower channel. It is either glossy or brushed and is intended for installation in the channel body. It is made of stainless steel and can withstand a test load of 300 kg.
Tece Drainline flat siphon with side outlet DN 50 650000. This shower channel siphon can be rotated 360° on the channel body, has a side outlet with DN 50 connection and a removable immersion tube. The installation height is 95 mm from the bottom of the siphon to the top of the shower channel. The reduced height of the hydraulic guard is 25 mm. The drainage capacity is in accordance with DIN EN 1253, with 10 mm/20 mm accumulation above the grate. The "basic" design grate has a capacity of 0.8 l/s.
Four Tece Drainline mounting feet , with an adjustable height between 94–142 mm, for the flat and standard drain. They help to adjust the height of the channel body and to fix it in position during the pouring of the screed. Each mounting foot comes with a sound insulation cap and mounting materials.
| Brandi | CEEC |
|---|---|
| The collection | Drainbase |
| Guarantee | 5 years |
| Product code | 600700 |
| Color | chromium |
| Finish | glossy |
| Length (cm) | 70 |
| Output type | laterite |
| Connection size | 50mm |
| Maximum load (kg) | 300 |
